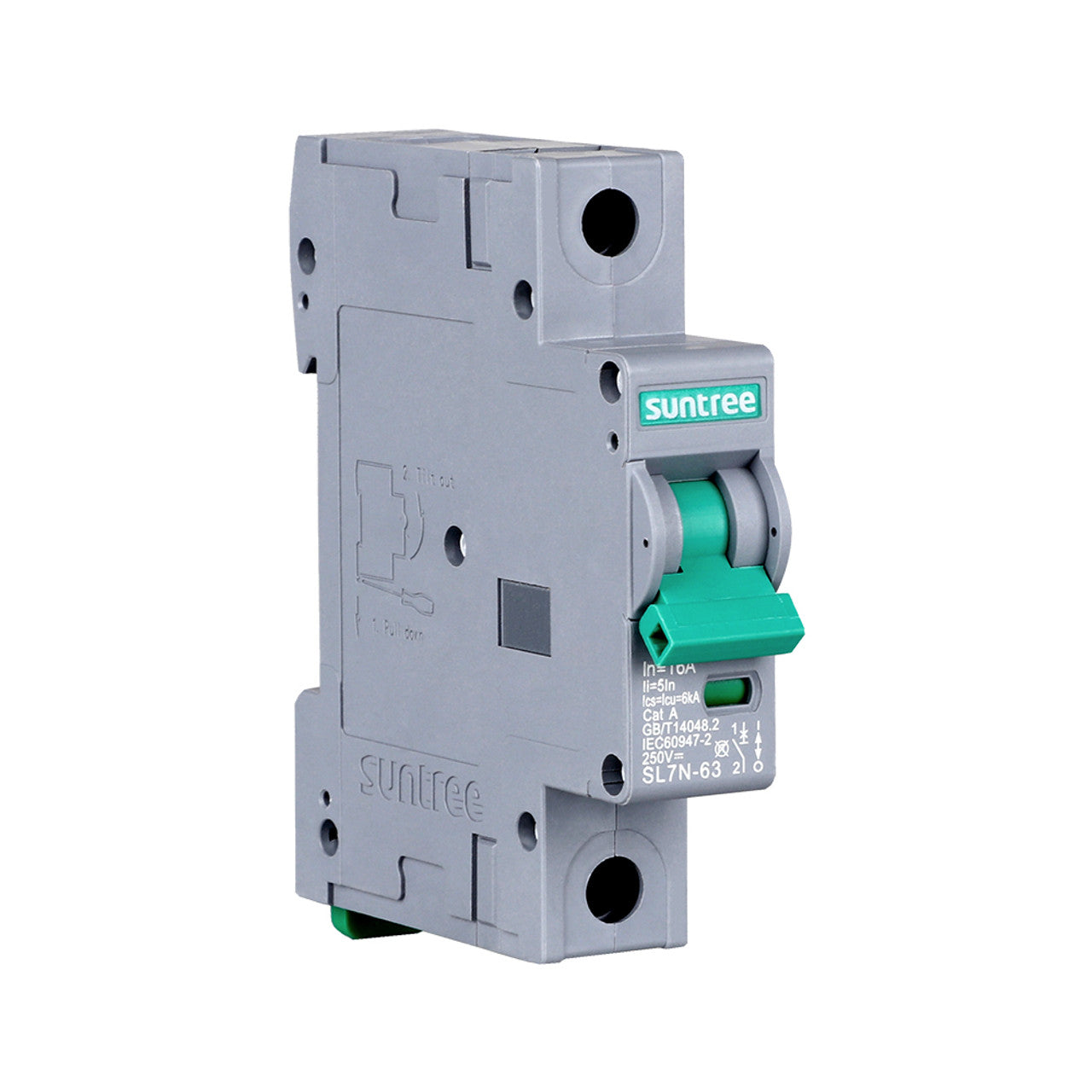

Renogy Suntree 16A 1P Miniature Circuit Breaker

The Renogy Suntree 16A 1P Miniature Circuit Breaker is the ideal device for protecting your electrical system from overload and short-circuit events. This miniature circuit breaker is designed to provide efficient and reliable protection for your electrical equipment, ensuring the safety and longevity of your devices.

This sleek and compact circuit breaker with a 16A current rating and 1P design is capable of handling a wide range of electrical loads, making it versatile and adaptable to various applications. Installing the Renogy Suntree circuit breaker is quick and easy, thanks to its user-friendly design and simple installation process. Once in place, it will actively monitor your electrical system, automatically tripping to disconnect power in the event of an overload or short circuit.

With multiple certifications like CE, RoHS, CB, TUV, and SAA, and a 1.5-year material and workmanship warranty, you can trust the Renogy Suntree 16A 1P Miniature Circuit Breaker to safeguard your electrical system efficiently!

Highlights

•    Double security
•    Safe to use
•    Durable
•    Built-in indicator window
•    Easy installation
•    Multiple safety certifications

SPECIFICATIONS:

Rated Insulation Voltage: 1250V

Operating Temperature Range: -22℉~158℉ (-30℃~70℃)

Storage Temperature Range: -40℉~185℉ (-40℃~85℃)

Rated Operating Voltage: 250V

Rated Frame Current: 63A

Protection Rating: IP20

Rated Current: 16A

Operating Relative Humidity: ≤95%

Number of Poles: 1

Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h)

Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h)

Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s)

Operating Short-Circuit Breaking Capacity: 6KA

Ultimate Short-Circuit Breaking Capacity: 6KA

Rated Impulse Withstand Voltage: 6KV

Certifications: CE, RoHS, CB, TUV, SAA

Mechanical Life: 20000 Times

Electrical Life: 1000 Times (<125VDC)

Trip Mechanism: Thermal-Magnetic

Damp Heat Resistance: Type 2

Dimensions: 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm)

Weight: 4.2 oz (120 g)

Installation Method:  DIN Rail

Recommended Terminal Torque: 17.7 inch·lbs~20.4-inch lbs (2 N·m~2.3 N·m)

Conductor Size: 14 AWG~4 AWG

Material and Workmanship Warranty: 1.5 Year

WHAT’S IN THE BOX:

1 x Renogy 16A 1P Miniature Circuit Breaker
