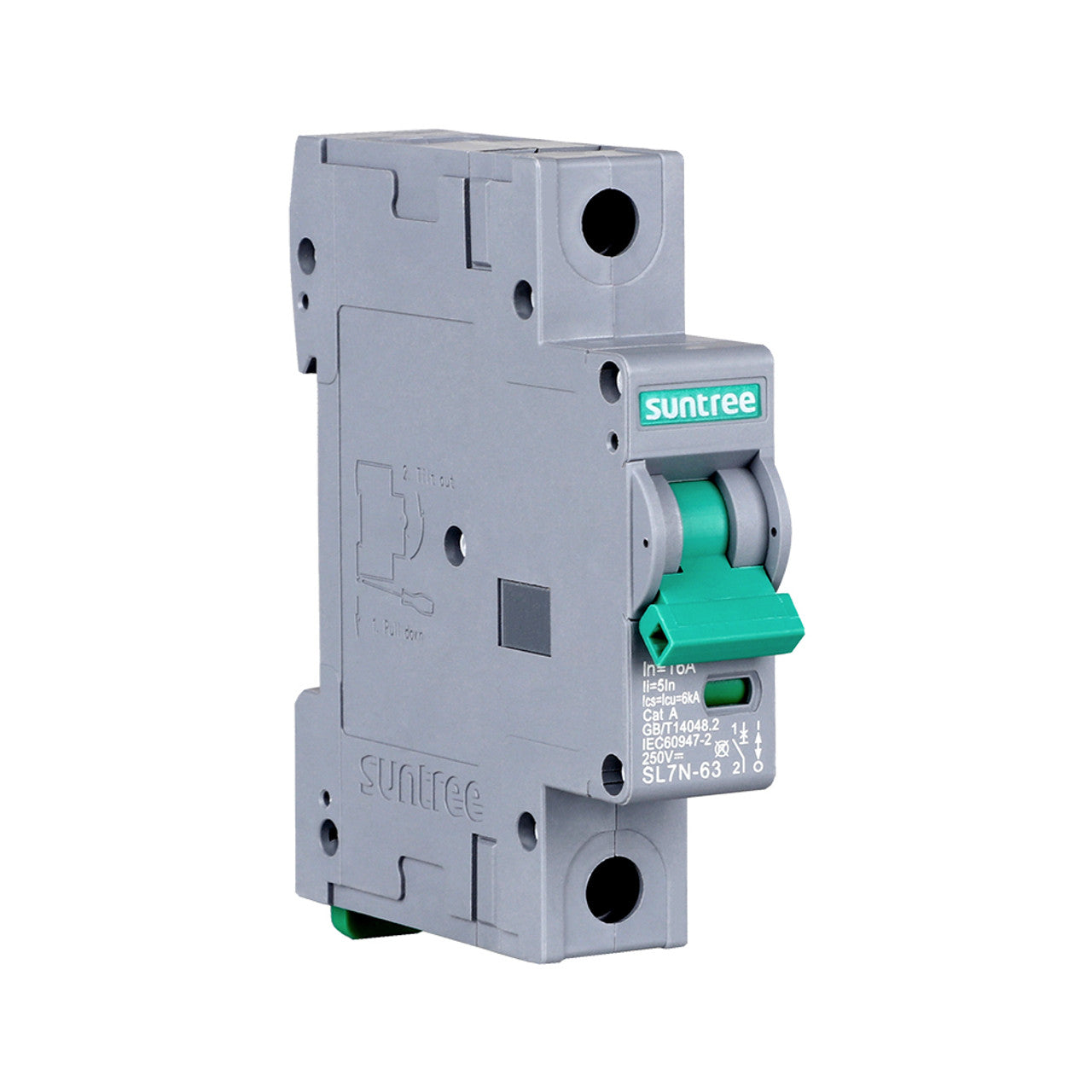

Renogy Suntree 10A 1P Miniature Circuit Breaker

The Renogy Suntree 10A 1P Miniature Circuit Breaker is the perfect solution for protecting your solar power system from overloads and short circuits. This compact breaker is designed to fit seamlessly into your power distribution system, providing reliable and efficient circuit protection. With a 10A rating, this miniature breaker is capable of handling a variety of electrical loads, making it a versatile choice for any solar power application.

Reliable and safe with multiple certifications like CE, RoHS, CB, and TUV, and a material and workmanship warranty for 1.5 years, this circuit breaker is your best investment to protect your battery from high current or damage.

Don’t let unexpected power surges put your system at risk – invest in the Renogy Suntree 10A 1P Miniature Circuit Breaker for peace of mind and dependable performance!

Highlights

•    Double security
•    Safe to use
•    Durable
•    Built-in indicator window
•    Easy installation

SPECIFICATIONS:

Rated Insulation Voltage: 1250V

Operating Temperature Range: -22℉~158℉ (-30℃~70℃)

Storage Temperature Range: -40℉~185℉ (-40℃~85℃)

Rated Operating Voltage: 250V

Rated Frame Current: 63A

Protection Rating: IP20

Rated Current: 10A

Operating Relative Humidity: ≤95%

Number of Poles: 1

Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h)

Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h)

Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s)

Operating Short-Circuit Breaking Capacity: 6KA

Ultimate Short-Circuit Breaking Capacity: 6KA

Rated Impulse Withstand Voltage: 6KV

Certifications: CE, RoHS, CB, TUV, SAA

Mechanical Life: 20000 Times

Electrical Life: 1000 Times (<125VDC)

Trip Mechanism: Thermal-Magnetic

Damp Heat Resistance: Type 2

Dimensions: 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm)

Weight: 4.2 oz (120 g)

Installation Method:  DIN Rail

Recommended Terminal Torque: 17.7 inch·lbs~20.4 inch·lbs (2 N·m~2.3 N·m)

Conductor Size: 14 AWG~4 AWG

Material and Workmanship Warranty: 1.5 Year

WHAT’S IN THE BOX:

1 x Renogy 10A DC Miniature Circuit Breaker
