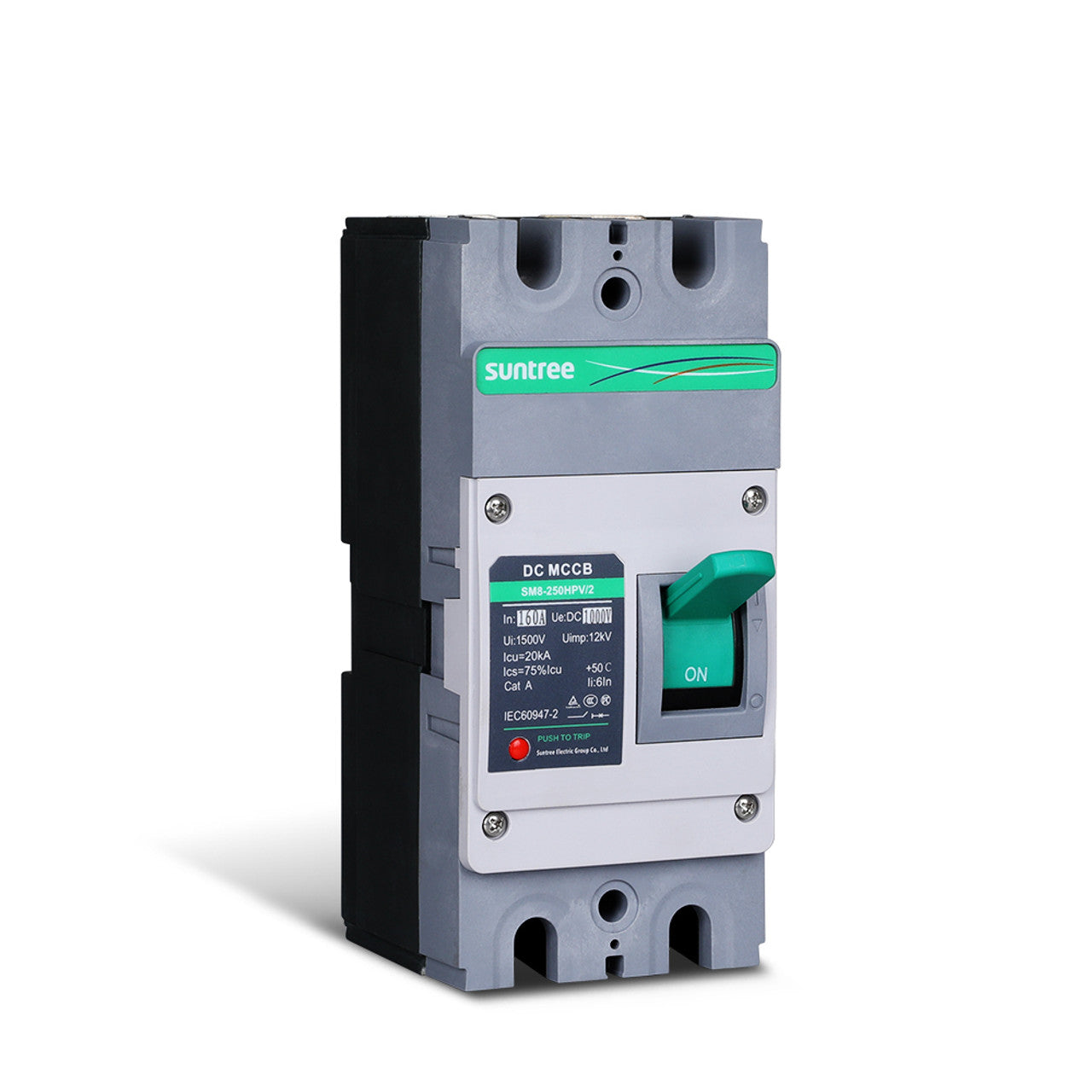

Renogy SUNDCCB160MC2P – Suntree 160A 2P Molded Case Circuit Breaker

Introducing the Renogy SUNDCCB160MC2P Suntree 160A 2P Molded Case Circuit Breaker, your ultimate solution for protecting your solar power system. This sleek and durable circuit breaker is designed to provide reliable overcurrent protection for your solar panels, inverters, and other vital components.

The Suntree DC Molded Case Circuit Breaker has a thermal and magnetic tripping mechanism to guard against overloads and short circuits in DC electrical installations. The circuit breaker automatically cuts off the electrical circuit when a fault is detected, preventing wire damage and lowering the possibility of a fire. When electrical repair is required, the circuit breaker can also be manually opened under the maximum rated load without sustaining any damage. The circuit breaker can be wired in either direction and operates under bidirectional current because it is designed for reversible connections. The handle’s markings make it easier to quickly determine the circuit breaker’s contact position. Easy installation is made possible by the unique design of the standard DIN rail and the vertical surface.

The Renogy Suntree circuit breaker is a must-have accessory for any solar power enthusiast. Don’t let electrical mishaps ruin your renewable energy investment – invest in the Renogy SUNDCCB160MC2P Suntree 160A 2P Molded Case Circuit Breaker today and enjoy peace of mind knowing your system is fully protected!

Highlights

•    Double security
•    Safe to use
•    Durable
•    Built-in indicator
•    Quick installation
•    Multiple uses

SPECIFICATIONS:

Rated Insulation Voltage: 1500V

Operating Temperature Range: -40℉~167℉ (-40℃~75℃)

Rated Operating Voltage: 1000V

Storage Temperature Range: -40℉~167℉ (-40℃~75℃)

Rated Frame Current: 250A

Protection Rating: IP20

Rated Current: 160A

Operating Relative Humidity: ≤95%

Number of Poles: 2

Rated Non-Tripping Current: 168A (≥2h)

Operating Short-Circuit Breaking Capacity: 15KA

Rated Tripping Current: 208A (<2h)

Ultimate Short-Circuit Breaking Capacity: 20KA

Rated Instantaneous Tripping Current: 1000A (<0.1s)

Rated Impulse Withstand Voltage: 12KV

Mechanical Life: 10000 Times

Electrical Life: 2000 Times

Mounting Screw (2): M4 x 55 mm

Trip Mechanism: Thermal-Magnetic

Damp Heat Resistance: N/A

Certifications: CE, RoHS, CB, TUV

Dimensions: 7.9 x 3.5 x 5.3 in (200 x 90 x 135 mm)

Weight: 4.67 lb

Recommended Terminal Torque: 44.3-inch lbs (5 N·m)

Conductor Size: 4 AWG-4/0 AWG

Material and Workmanship Warranty: 1.5 Year

WHAT’S IN THE BOX:

1 x Renogy 160A 2P DC Molded Case Circuit Breaker

2 x M4 x 55 mm Mounting Screws

2 x Insulation Barrier
