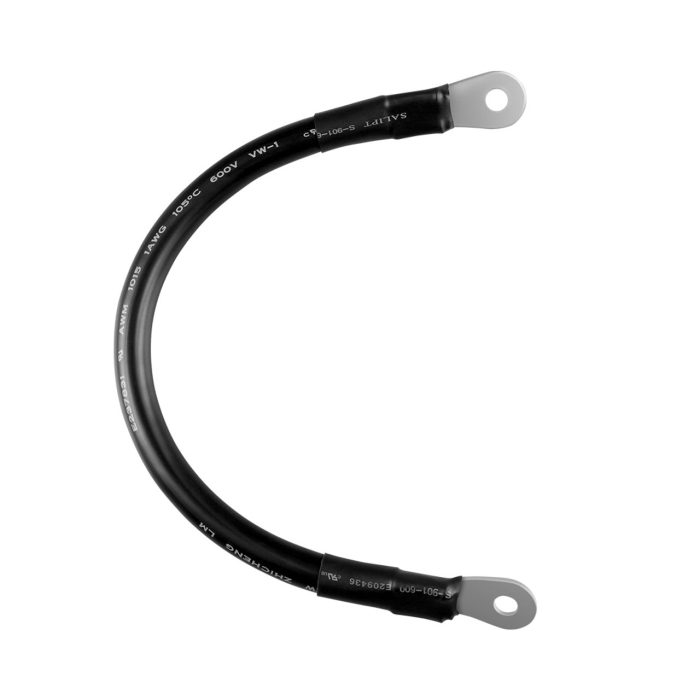

Renogy RNG-BatteryCb-16in-4 – 16In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs

Renogy 16in 4AWG is a high-quality copper battery interconnect cable specialized with 5/16″ tin-plated copper lugs on both ends to connect your batteries in series, parallel and series/parallel. This UV resistant, waterproof cable is TUV tested and certified for PV solar applications. While the tin-plated copper increases electrical and heat conductivity, the heat-shrink tubing guarantees safety with water and abrasion resistance.

Specifications:

Length: 16 in

AWG: 4

100% copper cable with a tin coated

Terminal: 5/16 In battery rings at both ends

Stranding: Class K 30 gauge bare copper

Voltage: 600/1000 V

Temperature: 221°F Dry, 167°F Wet

Warranty: 1 Year

What’s in the Box:

1 x 16In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs
