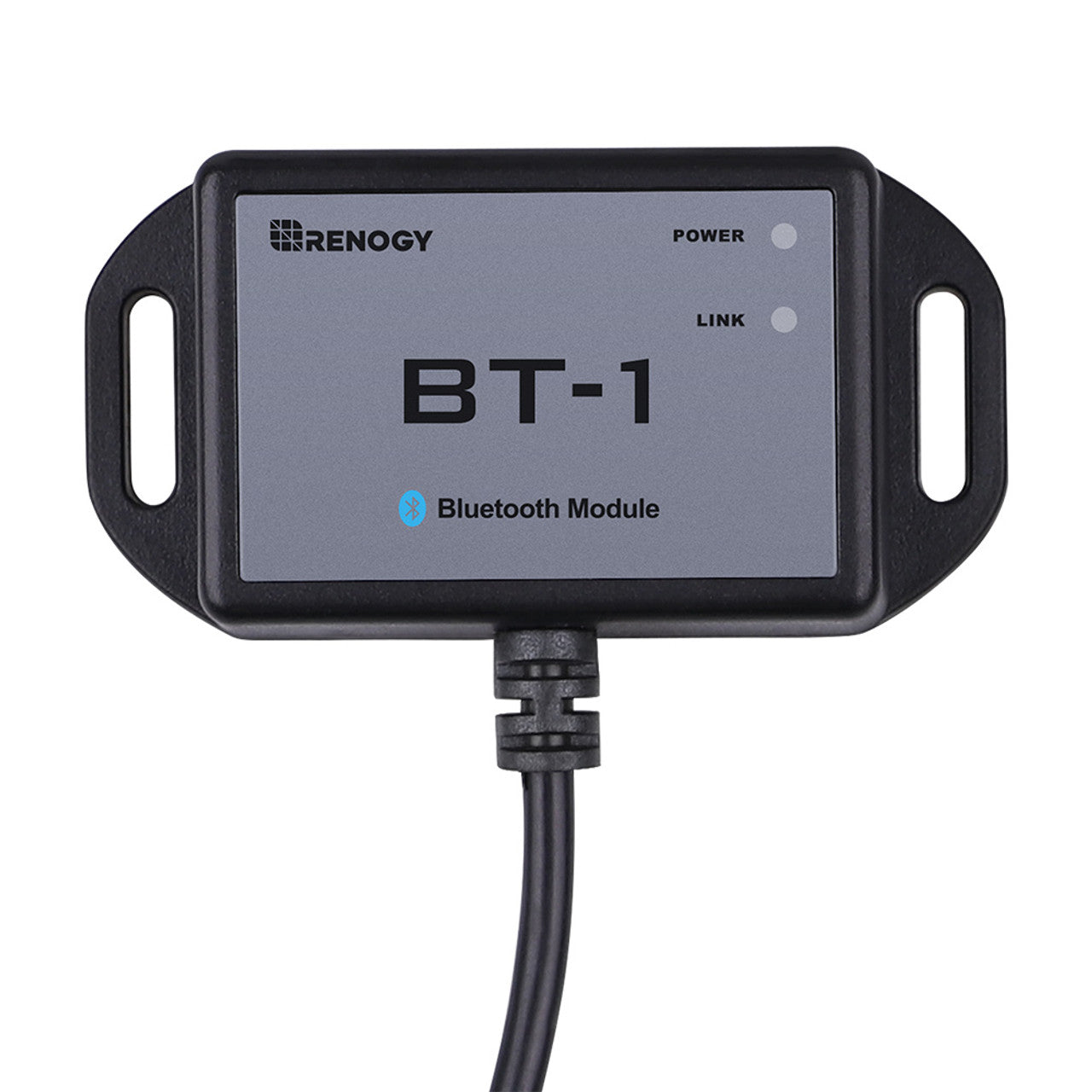

Renogy RCM-BT1-Renogy New BT-1 Bluetooth Module

Renogy brings your way an all new Bluetooth Module, the Renogy RCM-BT1, a perfect add on to your Renogy solar charge controllers. This updated module has an increased signal range of up to 82 feet and features an additional LED that alerts on device sync up. Powered by RJ12 communication port, you can now study the data and change parameters straight from your smart device through Renogy DC Home App, available on App Store and Google play now.

Features:

• Directly powered through controller’s RJ12 communication port
• Amplified signal range of up to 82 feet
• Fast, reliable communication with Bluetooth 4.2 and BLE tech
• Two LED lights in place to indicate BT1’s power and Bluetooth sync status
• Monitor and adjust compatible solar charge controllers via Bluetooth
• User-friendly Renogy DC Home Smart Phone app to track the system
• Embedded Bluetooth chip ensures high efficiency and low energy usage

Specifications:

Communication Protocol: RS232

Port Type: RJ12

Input Voltage: 5V

Protection Grade: IP54

Standby Power Consumption: 0.04W

Operating Power Consumption: 0.05W

Communication Range: ≤82ft

Serial Baud Rate: Fixed Baud Rate 9600bps

Cable Length: 5.00 m (16.4 ft)

Dimensions: 2.65 X 1.38 X 0.55 in

Installation Dimensions: 2.66 φ 0.14in

Operation Temperature: -20℃~85℃（-4°F to 185°F)

Weight: 4.58oz

Warranty: 1 Year

What’s in the Box:

1 x Renogy New BT-1 Bluetooth Module
