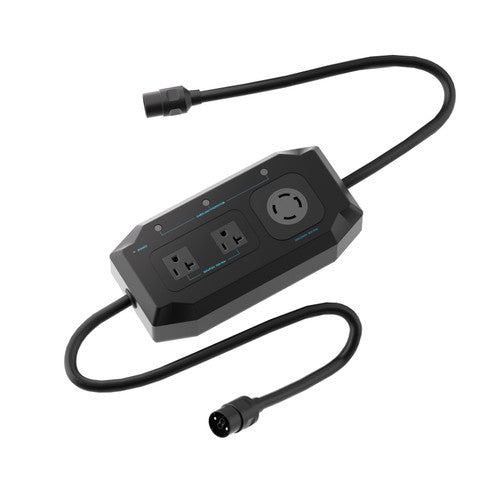

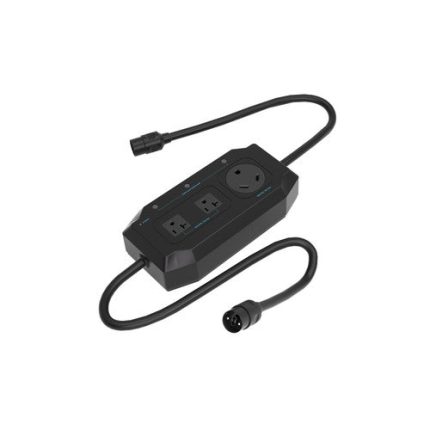

Renogy PHOENIX 30A Split Phase Parallel Kit

Expand your solar energy supply with Renogy Phoenix 30A Split phase parallel kit that effortlessly connect two of Renogy 1000 portable solar power stations to power your heavy duty home appliances and high load power tools up to 240v.

This plug and play split phase parallel kit is loaded with overload protectors and even boasts of a grounding terminals that prevents electric shocks keeping your devices and immediate environment safe and hazard free.

The robust kit features an intuitive power indicator to keep a tab on the operating status of the kit. Compact and portable, Phoenix 30A split phase parallel kit slips into the side pocket of your portable power station storage bag.

Specifications:

Dimension: 9.24 x 4.61 x 2.24 in. (Exclude Parallel Cables and Parallel Connectors)

Weight: 2.09 lbs

Parallel Cable Length: 3.28 ft. / 1.0 m

Operate Temperature: ‘-4°F~104°F / -20°C~40°C

Input Voltage: 120V

Output Voltage: 120V/240V

Maximum Input/Output Power: 7200W

AC Outlet Current Rating: 20A (NEMA 5-20R)/30A (NEMA L14-30R)

Material and Workmanship Warranty: 1 Year

What’s in the Box:

1 x Renogy 30A split phase parallel kit

1 x User Manual
