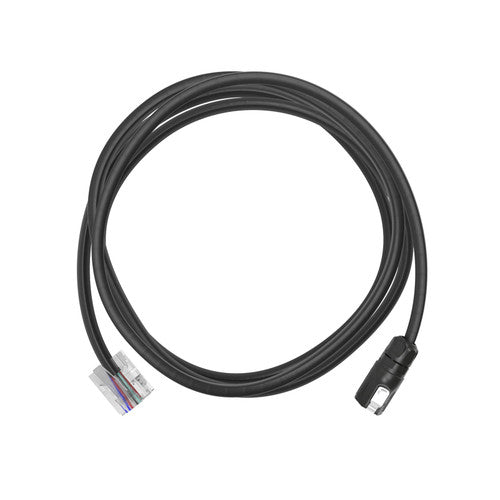

Renogy LP16 Plug (7-Pin) to RJ45 20Ft Communication Cable (No 12V Power Supply)

Renogy’s LP16 Plug (7-pin) to RJ45 is a 20Ft communication cable that establishes a connectivity between the Renogy ONE command center to your Renogy REGO series products. A clever way to monitor and control your REGO system, this plug & play cable allows single hand plug/unplug operation to ensure a quick and stable connection.

This 20Ft communication Cable with a standard RJ45 connector on one end hooks up your Renogy ONE RJ45 communication port to the CAN terminal of your REGO series products with a professional 7-pin LP16 connector on the other end.

Renogy communication cable houses a UL compliant 28AWG high-purity, oxygen-free tinted stranded conductors, twisted in pairs for optimal conductivity. The 3um gold plating used in the plug terminal ensures efficient electrical performance. An IP65 waterproof rating makes this Renogy cable the perfect bet to consistently take care of power supply even in harshest weather conditions.

Specifications:

Length: 20Ft

Wire Gauge: 28AWG*2P+3C

Rated Voltage: 300V

Baud Rate: ＞250kbps

Cable Material: Tinned Copper Wire & PVC Insulated Jacket

Terminal Type/Size: RJ45 Connector – LP16 Plug (7-Pin)

Temperature Rating: 80℃/176℉

Warranty: 1 Year

What’s in the Box:

1 x LP16 Plug (7-Pin) to RJ45 20Ft Communication Cable

1 x User Manual
