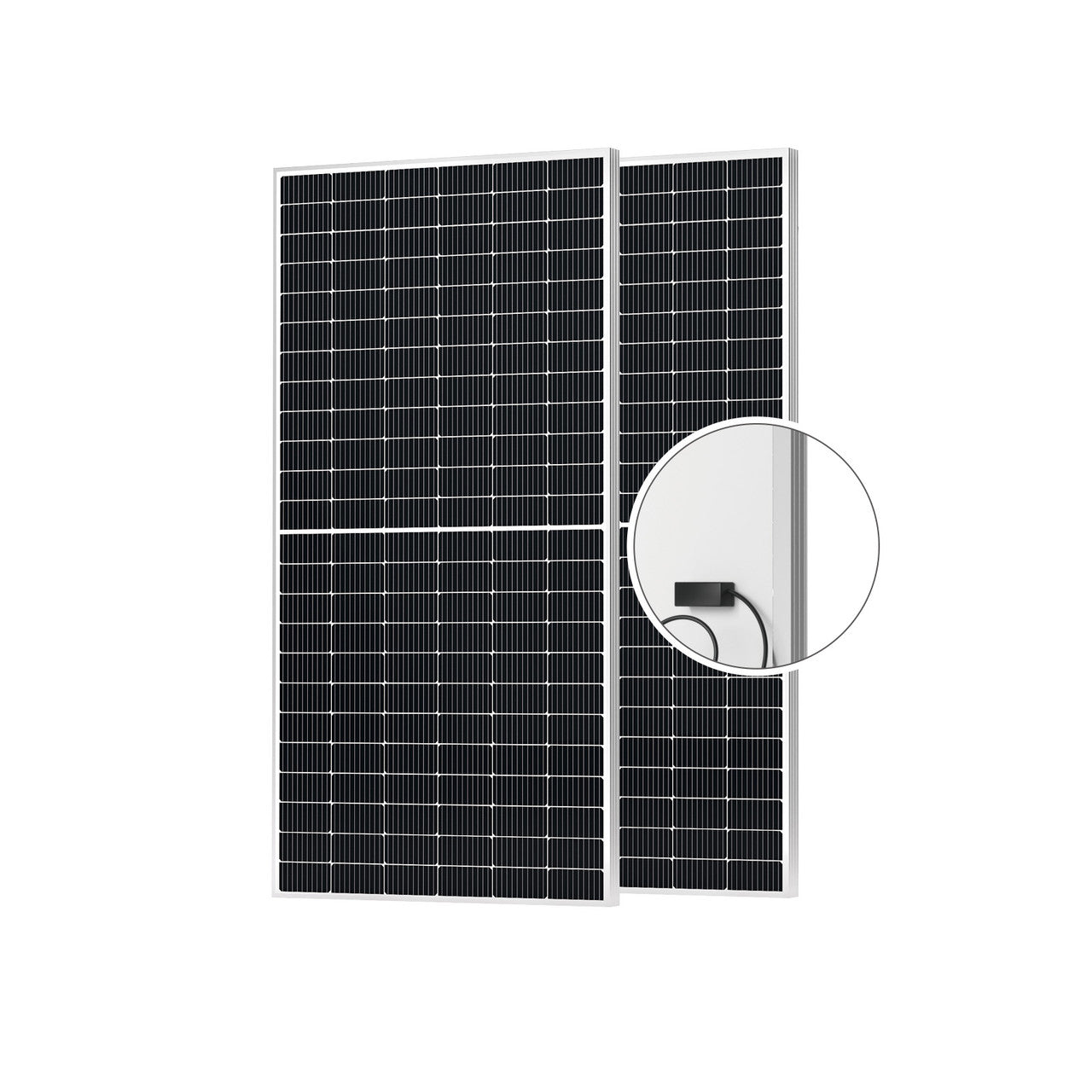

Renogy 550W Rigid Solar Panel(2 pcs)

Perfected for efficient energy conversion in low light conditions, the next-gen 550W rigid solar panels from Renogy are high-powered 550W monocrystalline solar panels engineered with high-efficiency PERC cells and space-optimized design is tailor-made for utility-scale systems, solar power plants, residential and commercial applications.

Cutting down your system equipment costs, Renogy solar panels combine high efficiency mono PERC cells with half cell and 10 busbar tech for optimal tapping of sustainable, renewable, green energy from the supreme sun reducing energy bills and your carbon footprint.

Renogy’s uncompromised quality and efficiency is doubled thanks to this 2 pcs solar panel pack, you can now enjoy 2200-2750Wh of power per day. No hot spots as our panels have passed the EL test of quality assurance with aces.

Highlights:

• 22.8% more sunlight is converted to energy
• Generate max power in least space
• Corrosion-resistant aluminum frame to survive extreme weather conditions
• Back frame and pre drilled mounting holes for easy installation
• Ideal for off-grid, on-grid and hybrid solar systems
• Endures high winds (2400pa) and snow loads (5400pa)
• IP68 rated waterproof junction box for extended durability

Specifications:

Output Cables: 12 AWG (1ft per cable)

Cell Type: PERC Monocrystalline (7.2 x 3.6 in)

Number of Cells: 144 (6 x 24), 72 cells in series

Junction Box: IP65 / IP68 (1m, 1h) rating

MC4 Solar Connectors: IP65 / IP68 (1m, 1h) rating

Maximum Power at STC: 550W

Cell Efficiency: 22.8%

Optimum Operating Voltage (Vmp): 41.97V

Open-Circuit Voltage (Voc): 49.95V

Optimum Operating Current (Imp): 13.11A

Short-Circuit Current (Isc): 14.05A

Operating Temperature: -40°F to 185°F

Maximum Series Fuse Rating: 25A

Maximum System Voltage: 1500V DC (UL)

Rated Current (MC4 Solar Connectors): 35 A

Weight: 62.8 lbs (28.5 kg)

Dimensions: 89.7 x 44.6 x 1.4 in (2279 x 1134 x 35 mm)

Maximum AWG Size Range (MC4): 10 AWG

Certifications: CE, ISO, ETL

Material and workmanship warranty: 10 year material and workmanship warranty

Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty

What’s in the Box:

2 x Renogy 550W Monocrystalline Rigid Solar Panel

1 x User Manual
