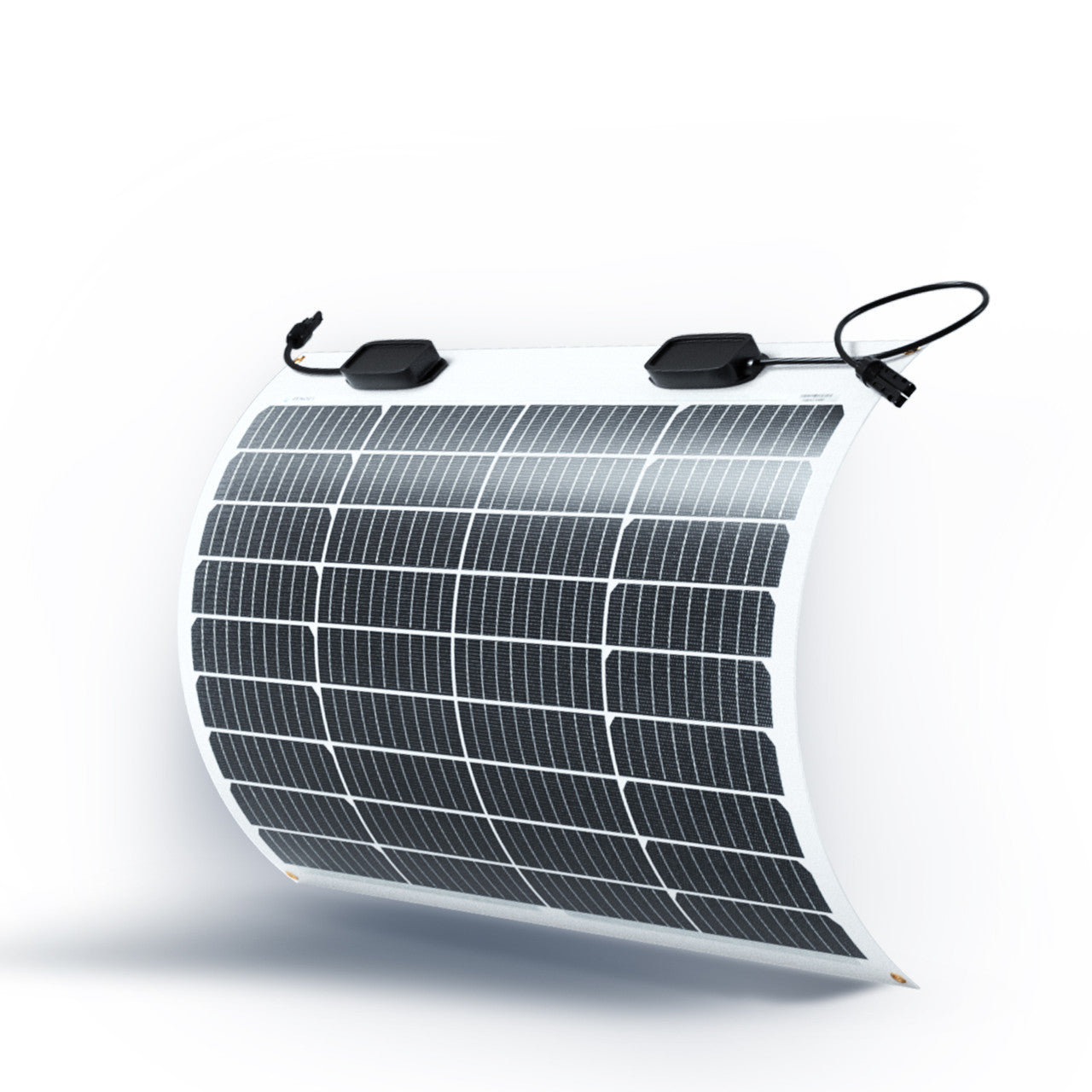

Renogy 50 Watt 12 Volt Flexible Monocrystalline Solar Panel

Lightweight, durable, and highly efficient, the Renogy 50 Watt Flexible Solar Panel is the ideal solution for mobile and marine energy needs. Designed with cutting-edge technology and a sleek profile, this panel performs exceptionally well in challenging environments, providing reliable power wherever your adventures take you.

Lightweight and Flexible Design

Weighing just 2.98 lbs and capable of bending up to 248 degrees, this panel is perfect for curved or irregular surfaces like RVs, boats, and tents. Its slim profile makes installation a breeze while maximizing space efficiency.

Flawless Grade A+ Solar Cells

Engineered with EL-tested Grade A+ solar cells, this panel delivers stable and superior power output. Its compact design ensures optimal performance even in small or irregular roof spaces, making it a perfect fit for any off-grid setup.

Built to Withstand Harsh Conditions

Featuring an IP68-rated waterproof junction box and IP67-rated solar connectors, this panel is built to endure extreme weather conditions, ensuring consistent energy production in marine and outdoor environments.

Enhanced Performance with PERC Technology

With advanced PERC (Passivated Emitter and Rear Contact) technology, this panel achieves a remarkable 22% conversion efficiency. The passivation layer captures more sunlight compared to traditional cells, delivering exceptional energy output.

Advanced 9 Busbar and Half-Cell Technology

The 9 Busbar structure improves low-light performance and shade tolerance, while Half-Cell technology reduces internal resistance, further optimizing energy efficiency and reliability in all conditions.

Specifications

Electrical Specifications:

• Maximum Power at STC: 50W ± 3%

• Optimum Operating Voltage (Vmp): 20.3V

• Optimum Operating Current (Imp): 2.47A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 2.75A

• Module Efficiency: 15.3%

• Maximum System Voltage: 600 VDC UL

• Maximum Series Fuse Rating: 15A

Physical Specifications:

• Dimensions: 28.0 x 18.1 x 0.2 in (712 x 460 x 4 mm)

• Weight: 3.1 lbs (1.4 kg)

• Solar Connectors IP Rating: IP67

• Junction Box IP Rating: IP68

• Temperature Range: -40°F to 194°F (-40°C to 45°C)

• Maximum AWG Size Range: 10 AWG

What’s Included

• 1 x 50 Watt 12 Volt Flexible Monocrystalline Solar Panel
