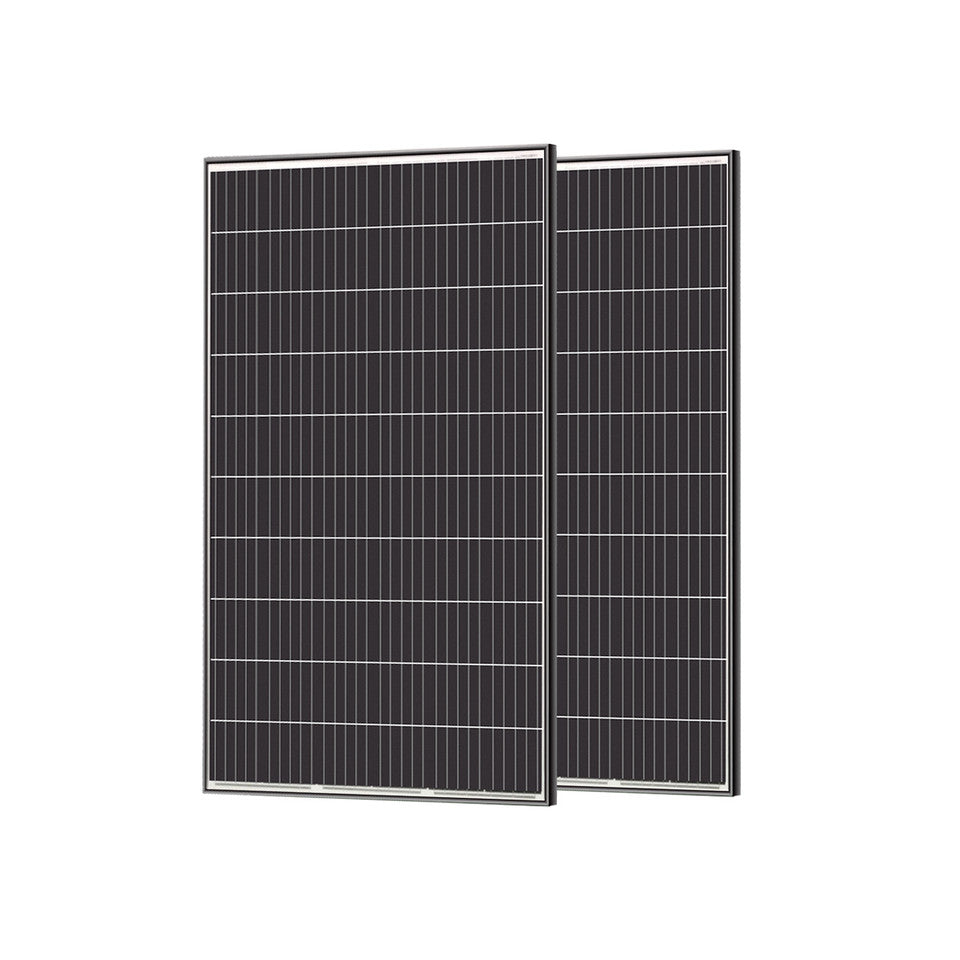

Renogy 320W Rigid Solar Panel (Double Piece)

Maximize your solar energy production with the Renogy 2pcs 320W Monocrystalline Solar Panel Set, designed to deliver high power output with less space, exceptional durability, and cutting-edge efficiency. Perfect for residential, commercial, and off-grid systems, these panels are built to perform reliably in any environment.

High-Efficiency PERC Cells

The advanced monocrystalline PERC cell technology delivers up to 21% efficiency, ensuring optimal energy conversion even in low-light or shaded conditions, maximizing your energy harvest.

Less Space, More Energy

A single 320W panel from Renogy generates more power while occupying significantly less space compared to three standard 100W panels. This space-saving design allows for efficient energy production, making it an ideal solution for installations with limited roof or ground area.

Uninterrupted Power Delivery

Bypass diodes ensure seamless performance by preventing solar cells from overheating. They allow the panel to continue generating power by bypassing underperforming cells caused by shading or debris, ensuring uninterrupted energy output even in less-than-ideal conditions.

High Light Transmission Values

The anti-reflective, low-iron tempered glass achieves a remarkable light transmission rate of up to 91.5%, maximizing sunlight absorption and converting more energy. This glass not only enhances energy efficiency but also provides robust impact resistance, safeguarding your panels against harsh outdoor conditions.

Durable Design for Longevity

Crafted with a corrosion-resistant aluminum frame and toughened glass, these panels are engineered to withstand extreme environments, including heavy snow loads and high winds. The rugged design ensures they remain reliable for long-term outdoor use, making them an excellent investment for sustainable energy solutions.

Specifications

• Maximum Power (STC): 320W

• Open Circuit Voltage (Voc): 40.3V (±5%)

• Short Circuit Current (Isc): 10.23A (±5%)

• Optimum Operating Voltage (Vmp): 33.0V

• Optimum Operating Current (Imp): 9.70A

• Module Efficiency: 19.20%

• Cell Efficiency: ≥22%

• Maximum System Voltage: 1500 VDC UL

• Maximum Series Fuse Rating: 20A

• Cell Type: Monocrystalline (6.3 x 6.3 in)

• Number of Cells: 60 (6 x 10)

• Dimensions: 65.6 x 39.4 x 1.4 in (1665 x 1002 x 35 mm)

• Weight: 39.7 lbs (18 kg)

• Front Glass: Tempered Glass, 0.13 in (3.2 mm)

• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)

What’s In The Box

2 x 320W Mono Solar Panels
