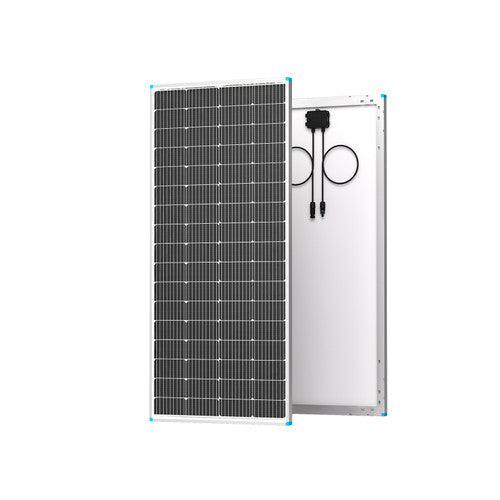

Renogy 200W Rigid Solar Panel

The Renogy 200W Rigid Solar Panel is a high-performance solar panel designed to deliver efficient energy for various off-grid applications, including RVs, boats, and cabins. This durable panel is built with high-quality materials to withstand harsh environments, making it an excellent choice for long-term outdoor use.

200W Power Output

Provides up to 200W of clean solar energy suitable for powering 12V batteries or running small off-grid appliances.

High-Efficiency Monocrystalline Cells

Renogy’s monocrystalline solar cells are known for their high efficiency, ensuring consistent energy production even in low-light conditions, helping you maximize energy generation.

Durable Aluminum Frame

The rigid panel is built with a corrosion-resistant aluminum frame, ensuring longevity and the ability to withstand snow, wind, and other environmental challenges.

Weather-Resistant Design

With an IP65-rated junction box, the panel is protected from low-pressure water jets and environmental particles, making it ideal for outdoor use in diverse weather conditions.

Pre-Drilled Holes for Easy Installation

The panel comes with pre-drilled holes for quick mounting and installation, compatible with Renogy’s Z-brackets, pole mounts, and tilt mounts.

Specifications:

• Max Power at STC: 200W
• Open Circuit Voltage: 23V
• Short Circuit Current: 11.05A
• Optimum Operating Voltage: 19.2 V
• Optimum Operating Current: 10.42 A
• Operating Temperature: -40°F~194°F / -40℃~90℃
• Maximum System Voltage: 600 VDC UL
• Maximum Series Fuse Rating: 20A
• Output Cable: 13 AWG (2.6 ft long)
• Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
• Weight: 26.46 lb (12 kg)
• Solar Cells: 68 Cells ((2+2)*17)
• Junction Box: IP65
• Connectors: Solar Connectors
• Module Efficiency: 19.2%
• Cell dimension: (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells
• Material and workmanship warranty: 10-Year Workmanship Warranty
• Performance Warranty: Over 80% Output at 25 Years

What’s in the Box:

1x Renogy 200W Rigid Solar Panel

1 x User Manual
