Renogy 200 Watt 12 Volt Solar RV Kit

The Renogy 200 Watt 12 Volt Solar RV Kit is a versatile and efficient solar power solution specifically designed for RVs, campers, and off-grid applications. It is a complete kit that includes all the components needed to power your RV and ensure a reliable energy supply when moving or at remote locations.

200W Solar Power Generation

This kit comes with two 100W monocrystalline solar panels, offering high efficiency and durability. It ensures that your RV remains powered even in less-than-ideal sunlight conditions.

30A PWM Charge Controller

The included 30A PWM charge controller helps regulate the voltage and prevents overcharging of the batteries. It also comes with an LCD display for monitoring power usage and system performance.

Durable and Weather-Resistant Panels

The monocrystalline solar panels are built to withstand harsh outdoor environments, offering protection against rain, snow, and wind. They have a corrosion-resistant aluminum frame, ensuring longevity.

Expandability

If your power needs increase, this kit is expandable, allowing you to add more panels to scale your system up easily.

Easy Installation

The kit comes with Z-brackets, a cable entry housing, and all necessary mounting hardware, making installation straightforward. The pre-drilled holes in the panels make mounting on RV roofs simple and secure.

Specifications:

• Maximum Power: 100W
• Maximum System Voltage: 600V DC (UL)
• Open-Circuit Voltage (Voc): 24.3V
• Short-Circuit Current (Isc): 5.21A
• Optimum Operating Voltage (Vmp): 20.4V
• Optimum Operating Current (Imp): 4.91A
• Weight: 14.1lbs
• Dimensions: 41.8 x 20.9 x1.4 in

• Nominal Voltage: 12 VDC/ 24 VDC
• Rated Charge Current: 30A
• Max. PV Input Voltage:: 50 VDC
• Max. PV Input Power: 12V(400W) / 24V(800W)

• Length: 16ft
• AWG: 10
• Rating Voltage: 600V
• Temperature: -40°F to +185°F

• Length: 30ft
• AWG: 10
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F

• Input Voltage: 5V-12V
• Communication Range: ≤15m
• Dimensions: 2.6 X 2.01 X 0.61 In
• Weight: 120 g (4.2oz)

• Withstanding Voltage: 1000V DC(TUV), 600V(UL)
• Protection Degree: IP67, mated
• Wiring Size Range: 10, 12, 14 AW
• Temperature: -40°F to +194°F

• Material: UV-resistant ABS Plastic
• Weight (each component): 7.9 oz.
• Recommended Adhesive: Sikaflex 252 or alike
• Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in
• Cable Gland Diameter Range: 6mm – 12mm

• Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
• Four Z Shape Solar Panel Brackets: Four Nuts

• Panels: 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 10-year material and workmanship warranty
• Accessories: 1-year material warranty

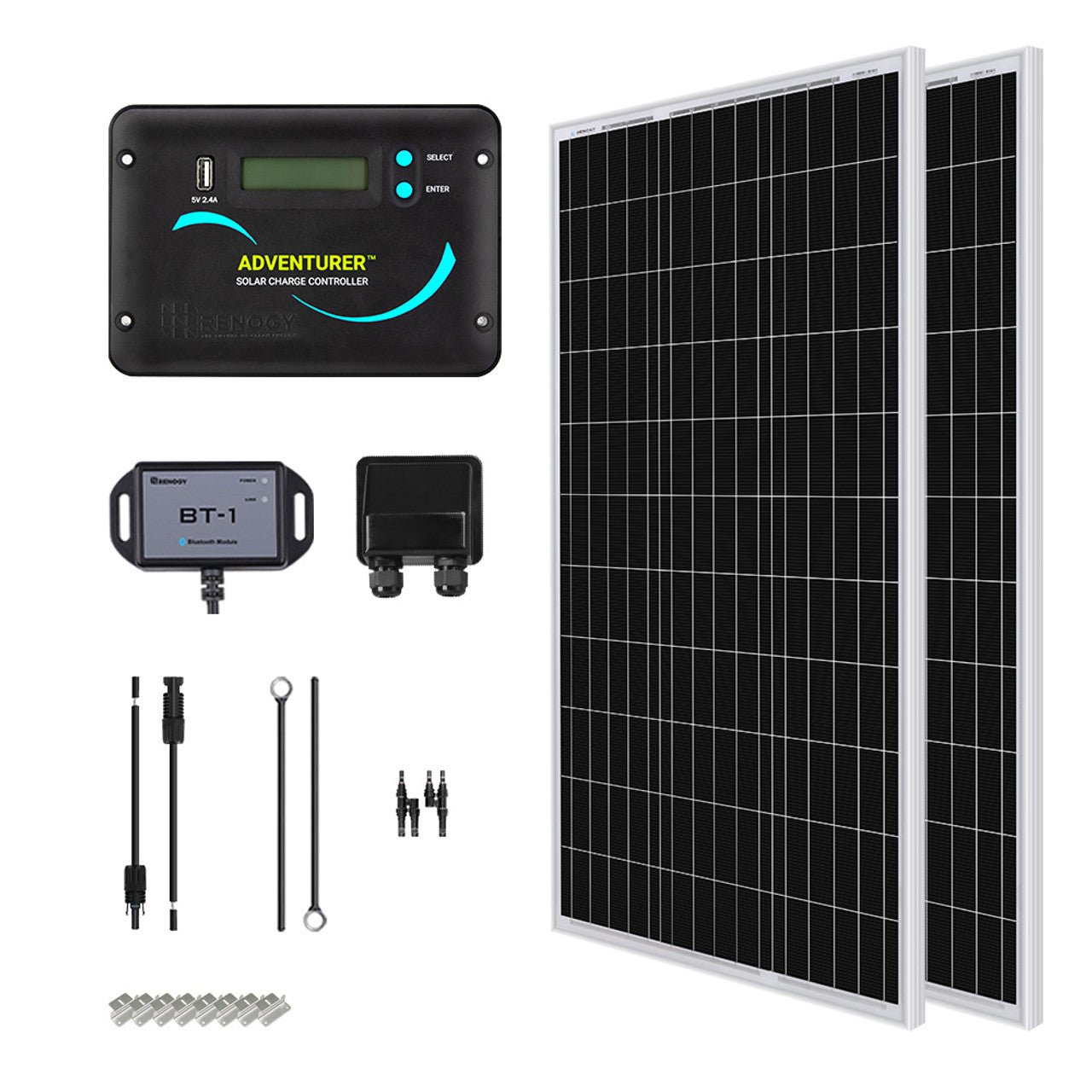

What’s in the Box:

2 x 100W Mono Solar Panel

1 x Renogy Adventurer-30A PWM Charge Controller

1 x Renogy Solar Y Branch Connectors

1 x Renogy 30ft 10AWG Solar Adaptor Kit

1 x Cable Entry Housing

1 x Renogy 16ft 10AWG Tray Cables

2 x Mounting Z Brackets

1 x Renogy BT-1 Bluetooth Module
