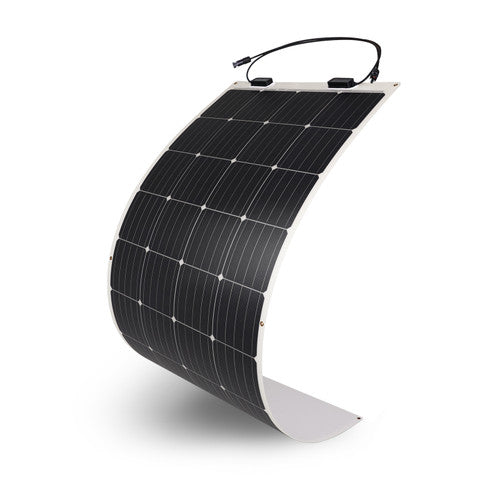

Renogy 175W Flexible Solar Panel

The Renogy 175W Flexible Solar Panel is an ultra-lightweight and versatile option for solar energy generation, perfect for curved or irregular surfaces such as RVs, boats, and campers. Below are the key features, specifications, and what comes in the box:

High Efficiency

With advanced monocrystalline cells, this panel offers high energy conversion rates of up to 22%, ensuring efficient power generation even in low-light conditions.

Flexible Design

Capable of bending up to 248 degrees, the panel can conform to various curved surfaces, making it ideal for non-traditional installations like RV roofs, boat decks, and tents.

Lightweight and Thin

Weighing only 6.2 pounds and with a thickness of just 0.08 inches, this panel is easy to transport, install, and handle. It’s ideal for those seeking a portable solar solution without the weight of traditional panels.

Durable and Weather-Resistant

Constructed with highly durable materials, the panel is designed to withstand extreme weather conditions, including high winds and heavy snow. Its IP68-rated junction box ensures protection against dust and water.

Easy Installation

Pre-drilled holes and flexible mounting options allow for quick and easy installation using adhesives, Velcro, zip ties, or mounting brackets.

Specifications:

• Maximum Power at STC: 175W
• Module Efficiency: 17.3%
• Optimum Operating Voltage (Vmp): 19.5V
• Open-Circuit Voltage (Voc): 23.9V
• Optimum Operating Current (Imp): 8.89A
• Short-Circuit Current (Isc): 9.50 A
• Operating Temperature: -40°F to 185°F (-40ºC to +85ºC)
• Maximum Series Fuse Rating: 15A
• Maximum System Voltage: 600V DC (UL)
• Certifications: CE, ISO
• Weight: 6.2 lbs (2.8 kg)
• Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)
• Material and workmanship warranty: 5 years
• Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty

What’s in the Box:

1 x Renogy 175W Flexible Solar Panel
