Power Breakout
$328.00 Original price was: $328.00.$131.20Current price is: $131.20.

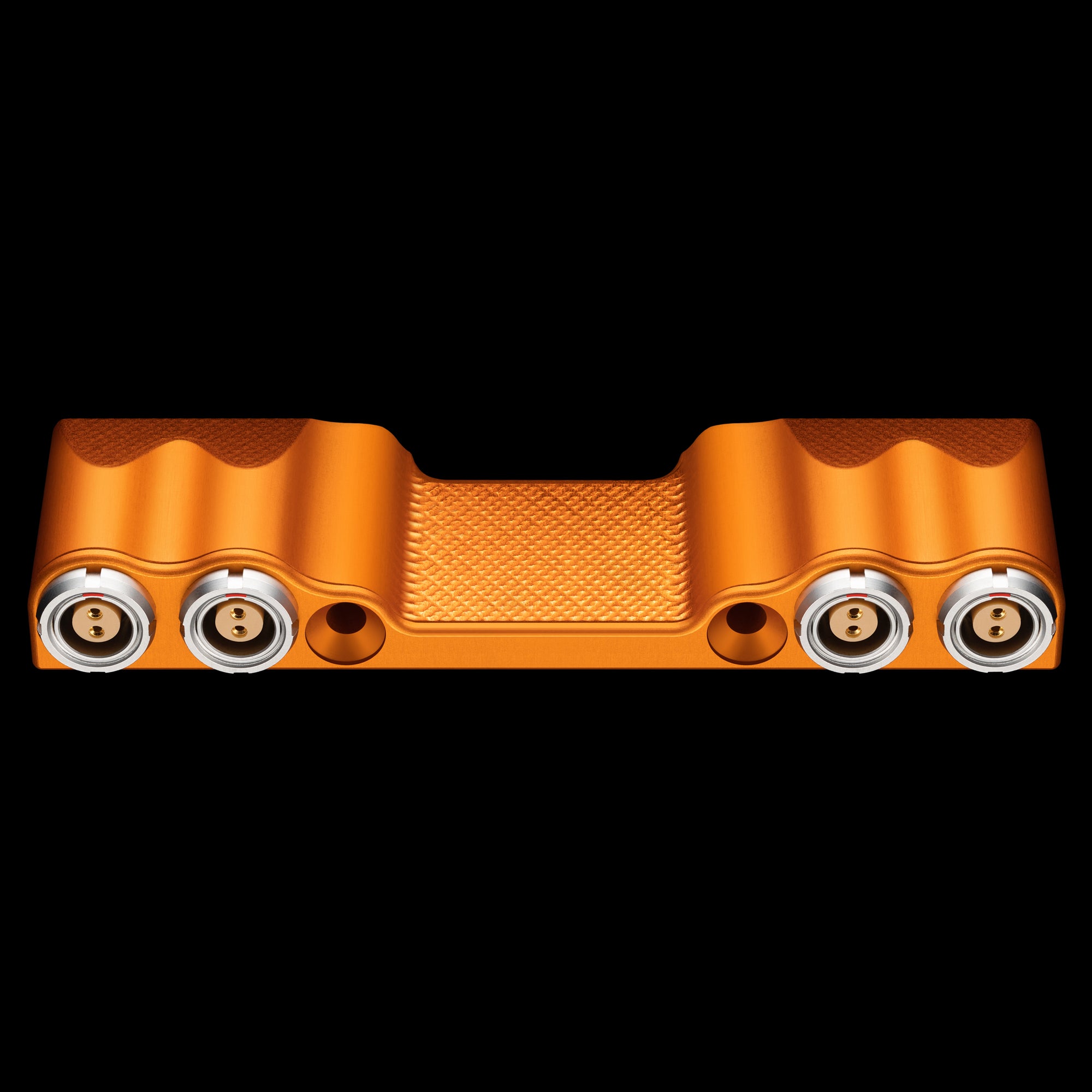

Power Breakout
Premium 2-Pin Lemo power distribution!
Use one socket as an input, leaving three outputs for your transmitter, EVF, monitor or FIZ 🎥🔥
Combine Power Breakout with Camera Top Plate A or B, and 105mm Rod Mount, for an ultra rigid, low profile, feature filled package – ideal for handheld and tripod shooting – even better for sliding in and out of gimbal cages!
KEY FEATURES
- Any Lemo socket can be an input or an output
- Custom PCB, grounded and tested
- CNC machined from 6061-T651 aluminium billet
- Mounts to all Camera Top Plates
- Mounts to all KEYSTONES
- Mounts to Bridge Plate Booster Seat
- Mounts to Adapter Plates for ALEXA 35
Expand ↓ for compatibility, FAQs and specs.
Power Breakout is primarily designed to draw power from the gimbal, and distribute that power to your accessories such as Teradek transmitter and FIZ system.
Rigging this way, using fit-for-purpose cables, optimises cable routing, minimises snags and keeps the camera build clean.
We recommend these cables:
MōVI Pro or MōVI XL to Power Breakout
D-Tap to 2-Pin Lemo StraightRonin 2 to Power Breakout
Ronin 2 to 2-Pin Lemo StraightTB50 Power Pack for KOMODO to Power Breakout
2-Pin Lemo Right Angle to 2-Pin Lemo StraightTB50 Hammerhead to Power Breakout
2-Pin Lemo Right Angle to 2-Pin Lemo StraightYour preferred V-Mount or Gold Mount battery to Power Breakout
(we recommend a battery source that offers a Lemo output)
D-Tap to 2-Pin Lemo Straight
2-Pin Lemo Right Angle to 2-Pin Lemo Straight
2-Pin Lemo Straight to 2-Pin Lemo StraightFor many operators a high performance, reliable, yet simple power solution is critical to their workflows.
Power Breakout minimises unplug and reconnect times and enables fast Quick Mode Changes.
Which 2-Pin Lemo sockets are inputs and which are outputs?
- You can use any socket as an input or output
- WARNING: Do not input two or more power sources
Is Power Breakout grounded?
Yes it is.
All Ignite Digi connectors make a ground connection through the connector housing before signal or power connections are made. This reduces the likelihood of blowing SDI ports.
Why not D-Tap / P-Tap?
We don’t offer a D-Tap solution because D-Tap connectors cannot be grounded. We aim to reduce any risk of damaging your equipment.
What accessories can I power?
- FIZ motors
- MDR lens controller
- Teradek transmitter
- CineTape / Rangefinder
- Monitor
- EVF
What does Power Breakout mount to?
Use two M4 x 35mm countersunk screws to mount to:
- MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised2-PIN LEMO SPECS
Connector: FGG.0B.302
Socket: EGG.0B.302SHIPS WITH
Four M4 x 35mm countersunk screwsWEIGHT
2.18oz / 62g with screwsDIMENSIONS
4.01 x 1.25 x 0.59” / 102 x 32 x 15mm You may also like these accessories:
- TB50 Battery Adapters for MōVI Pro
- TB50 Battery Adapters for MōVI XL
- TB50 Power Pack for RED KOMODO
- TB50 Hammerhead
- Quick Release Top Handle
.
Colour | Ignite Orange ,Black |
---|
