Designed for Freefly Systems Ember S2.5K and S5K!

We’ve taken what we learnt from KEYSTONE for KOMODO and designed a similar ultra strong, lightweight cage for ambitious builds and demanding workflows.

CENTRED SENSOR.

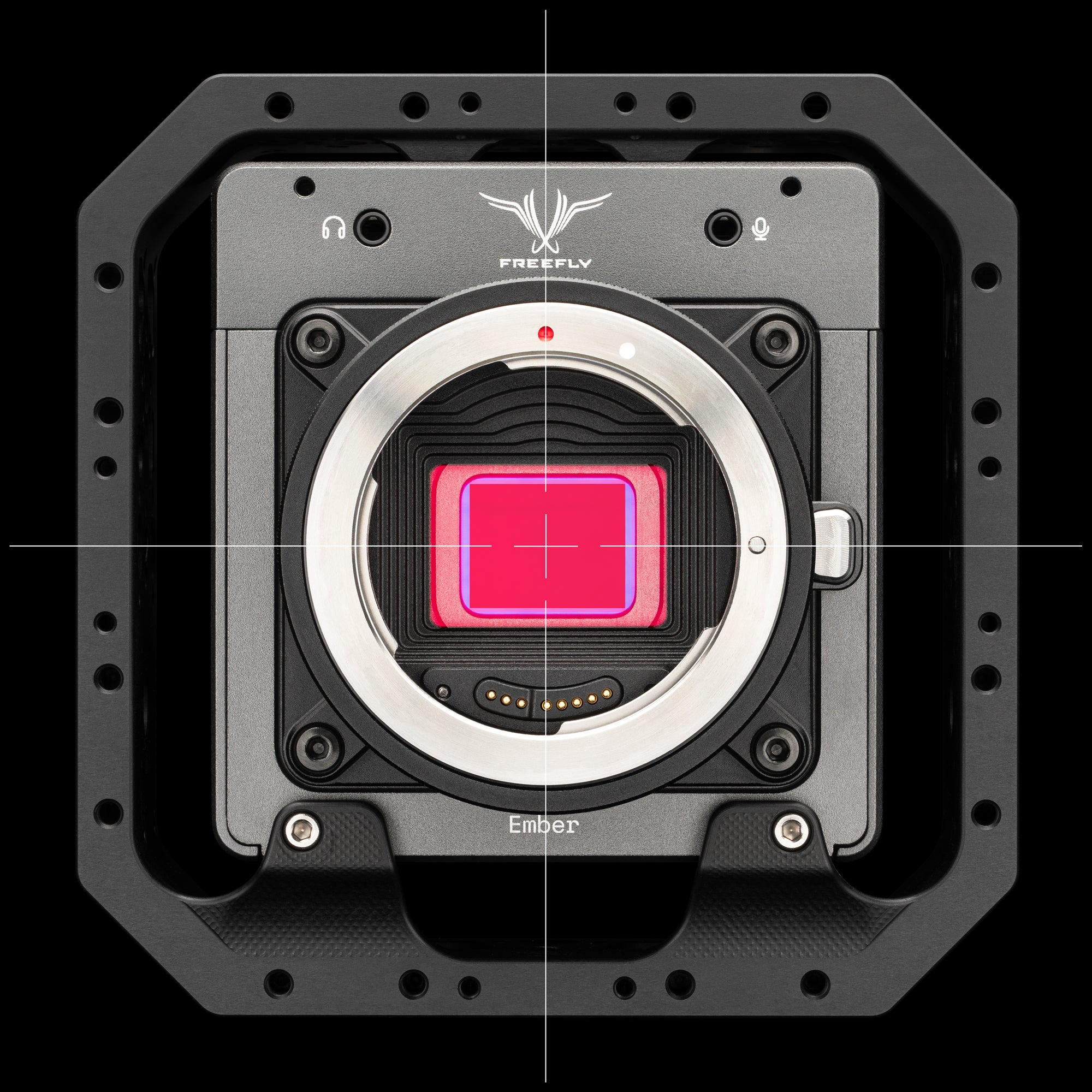

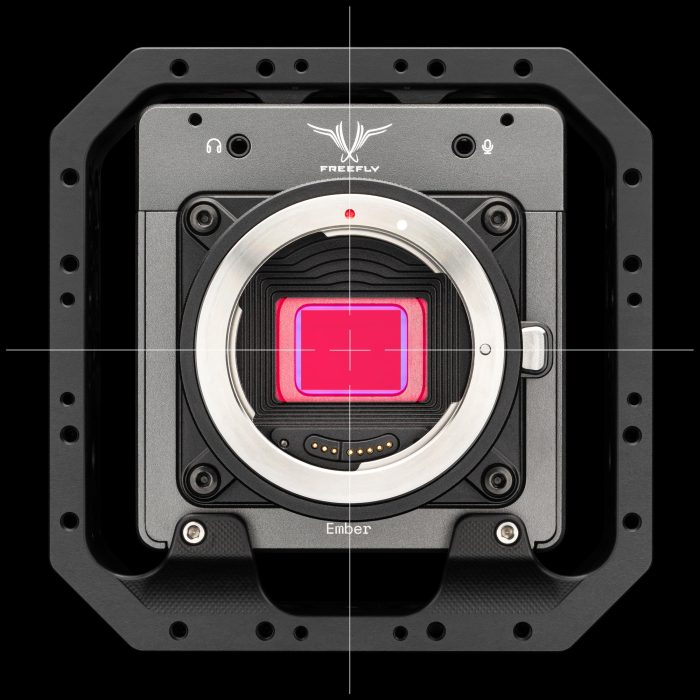

KEYSTONE (140 x 140mm) is symmetrical. Ember’s form factor is a little less balanced. We’ve positioned Ember so the sensor becomes perfectly centred inside the cage — ideal for linear nodal roll axis shots and precision cinema robotics 🎥🔥

There’s ample clearance to maintain airflow, change lens mounts and swap KipperTie Revolva ND cartridges!

We’ve included twelve ⅜”-16 Pin-Locks and three ¼”-20 Pin-Locks — based on the new ARRI interfaces standard.

Mount dovetail plates, rod mounts, rosette handgrips, transmitters, monitors, Powers Breakouts, and MDRs!

CNC machined from 6061-T651 aluminium billet in Tasmania Australia.

.
KEY FEATURES

• A total of 84 threaded holes
• 2x ARRI rosettes / 4x cold shoe mounts
• 4x M3 screws hold Ember in place
• Sensor becomes centred
• Mount a Bolt or Transmission transmitter
• Quickly change from landscape to portrait mode
• Easily swap KipperTie Revolva cartridges
• Compatible with Freefly Ember accessories
• Unlocks the Ignite Digi accessory ecosystem
• Works with ARRI accessories like MAP-2 & CCH-2
• 14oz / 401g including stainless steel rosettes
• 5.51 x 5.51 x 1.85″ / 140 x 140 x 47mm
  (KEYSTONE is the same height as ALEXA Mini LF)
