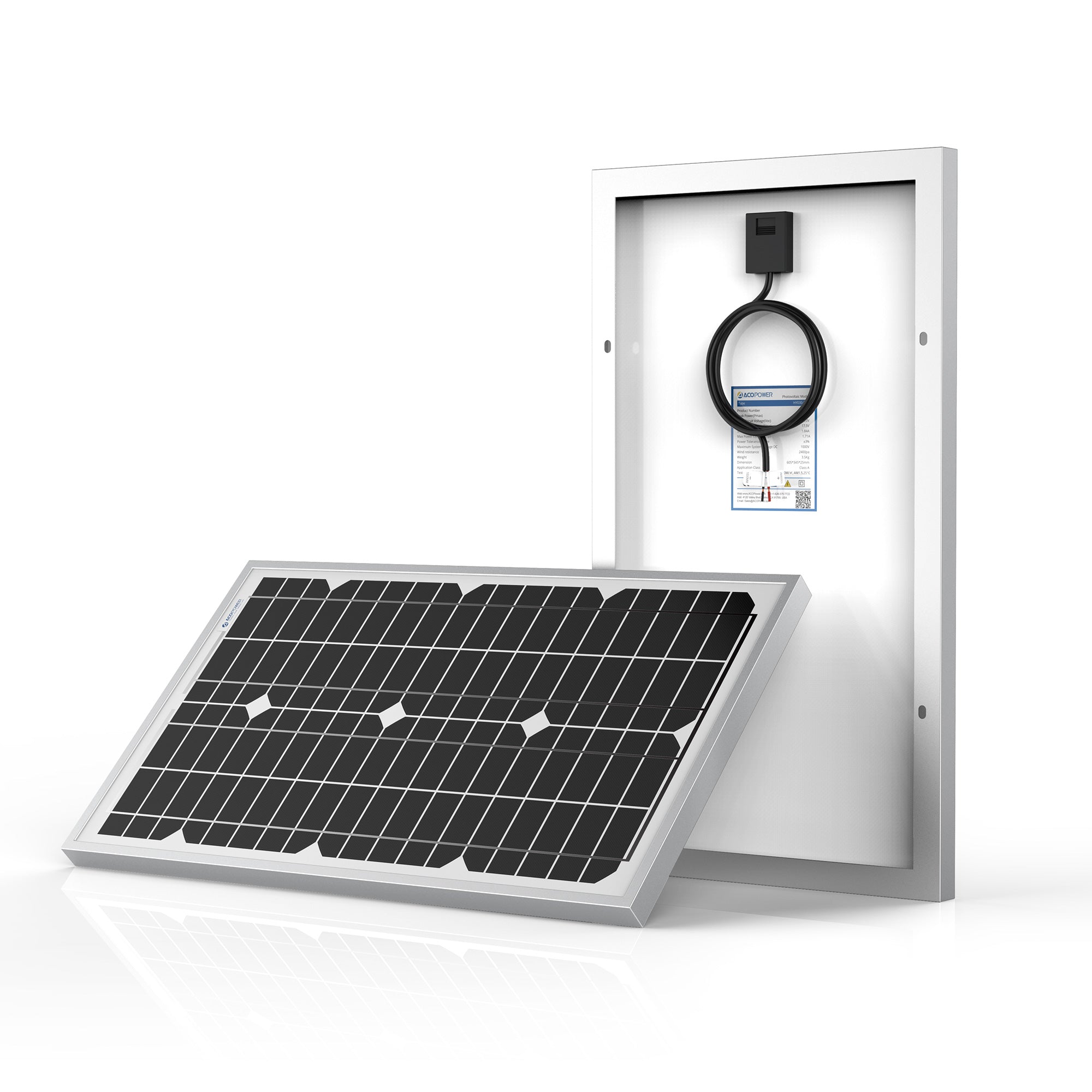

Acopower Mono Modules 30W

Your off-grid adventures just got a greener edge with the Acopower Mono Module 30W, a 30W Monocrystalline Solar Panel to charge your 12V battery, anytime, anywhere. Rated for highest conversion efficiency, the panel provides 30W of continuous power, perfect for off-grid applications and resident solar systems.

Our solar panel has easy-to-install, pre-drilled holes and a 12AWG cable with PV Male/Female quick connectors, ready-to-use out of the box. The panel itself is an intuitive, aesthetic design with sturdy aluminum alloy frame and anti-reflective, low iron-tempered glass. Complementing the looks with its superior functionality is the advanced encapsulation material with multi-layered sheet to enhance cell performance and extend service life.

The basic component for your 12V/24V/36V/48V system can withstand high winds (2400Pa) and snow loads (5400Pa), keeping your carbon footprint to bare minimum.

Specifications:

Peak Power (Pmax):30W

Short Circuit current (Isc): 1.81A

Open circuit voltage (Voc): 21.2V

Optimum operating current (Imp): 1.67A

Optimum power voltage (Vmp): 18V

Weight: 6 lb

Dimension: 23.62 x 16.14 x 1.18 in.

All technical data at STC Test condition:1000W/m², AM1.5,25℃

What’s in the Box:

1 x 30W Solar Panel

1 x 12AWG cable with PV Male/Female Quick Connectors

1 x User Manual
