Whether you’re on MōVI Pro, Ronin 2, or in studio mode — it’s highly recommended to reduce or eliminate lens mount stress and flex.
The rod mounts are spaced 80mm apart — centre to centre. Designed to take 15mm carbon, titanium, or steel rods. The 80mm spacing helps create a ‘flat’ camera package. More on that below.
Ships with 1-inch and 1.5-inch stainless steel posts!
60mm vs 80mm Spacing
The 60mm standard that’s been around for decades does provide correct lens height — the downside, the rod clamps and FIZ motors can clash with the gimbal cage. Preventing you from sliding the camera package further back and perfecting the balance point!

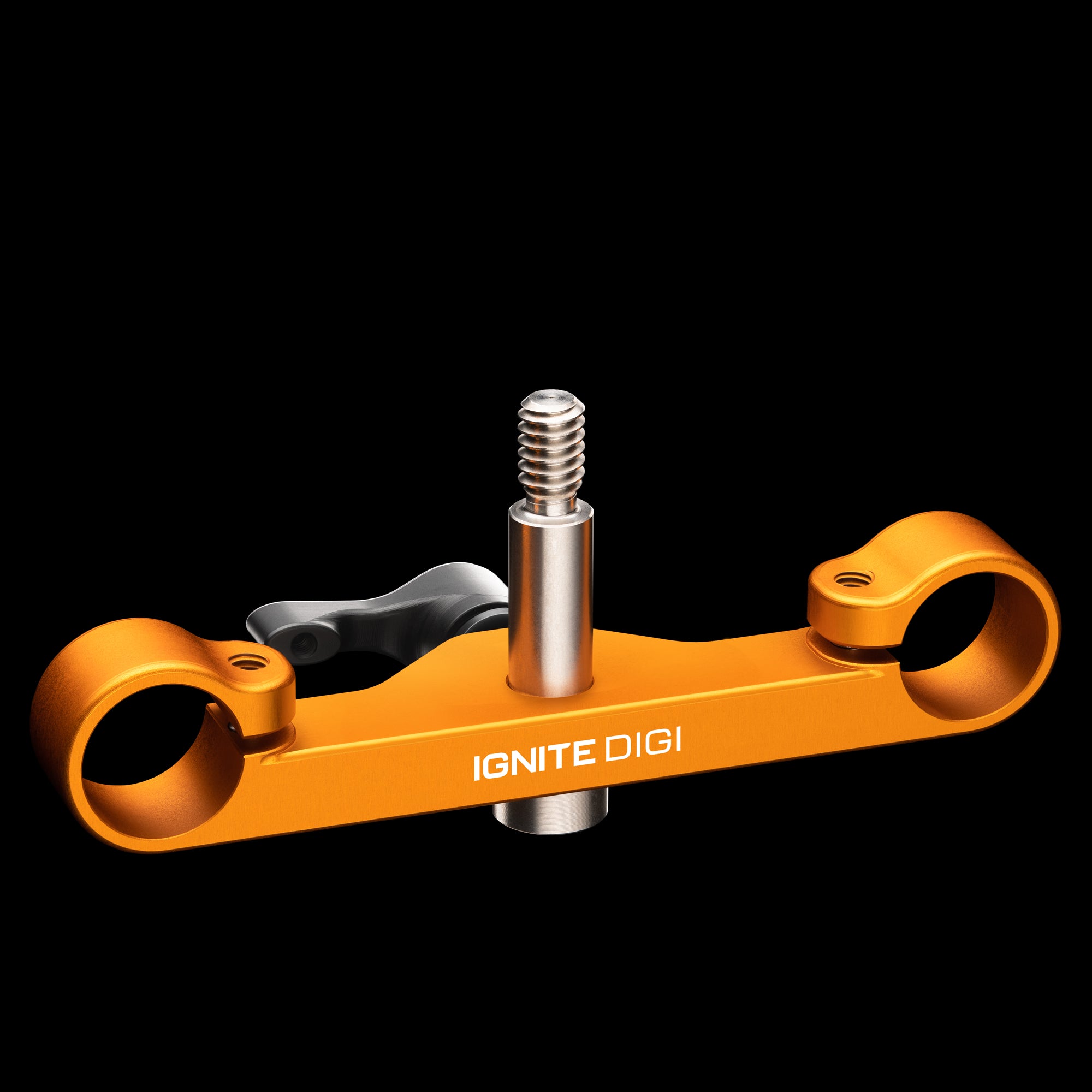

This is what drove us to design our 80mm Rod Mount and 80mm Lens Support. These help create a ‘flat’ camera package ideal for all gimbals 🔥
————————————
Two M4 x 10mm socket head cap screws clamp the rods in place. In the box you’ll find four screws — two installed and two spare.
The aluminium ratchet lever makes for easy post adjustments in any conditions without tools.
The 1-inch post will cover most builds with ALEXA Mini, Mini LF, VENICE, KOMODO-X and V-RAPTOR.
The 1.5-inch post is better suited for RED DSMC2, RANGER and V-RAPTOR-XL.
CNC machined from a single block of high-grade aluminium.
Designed and manufactured in Tasmania, Australia.
MADE FROM High-grade 6061-T651 aluminium billet Hard anodised
SHIPS WITH Four M4 x 10mm socket head cap screws One ¼”-20 x 1-inch stainless steel post One ¼”-20 x 1.5-inch stainless steel post Two ¼”-20 to ⅜”-16 thread adapters
